MG21VT

Description

Problem

Water hardness.

Unit description

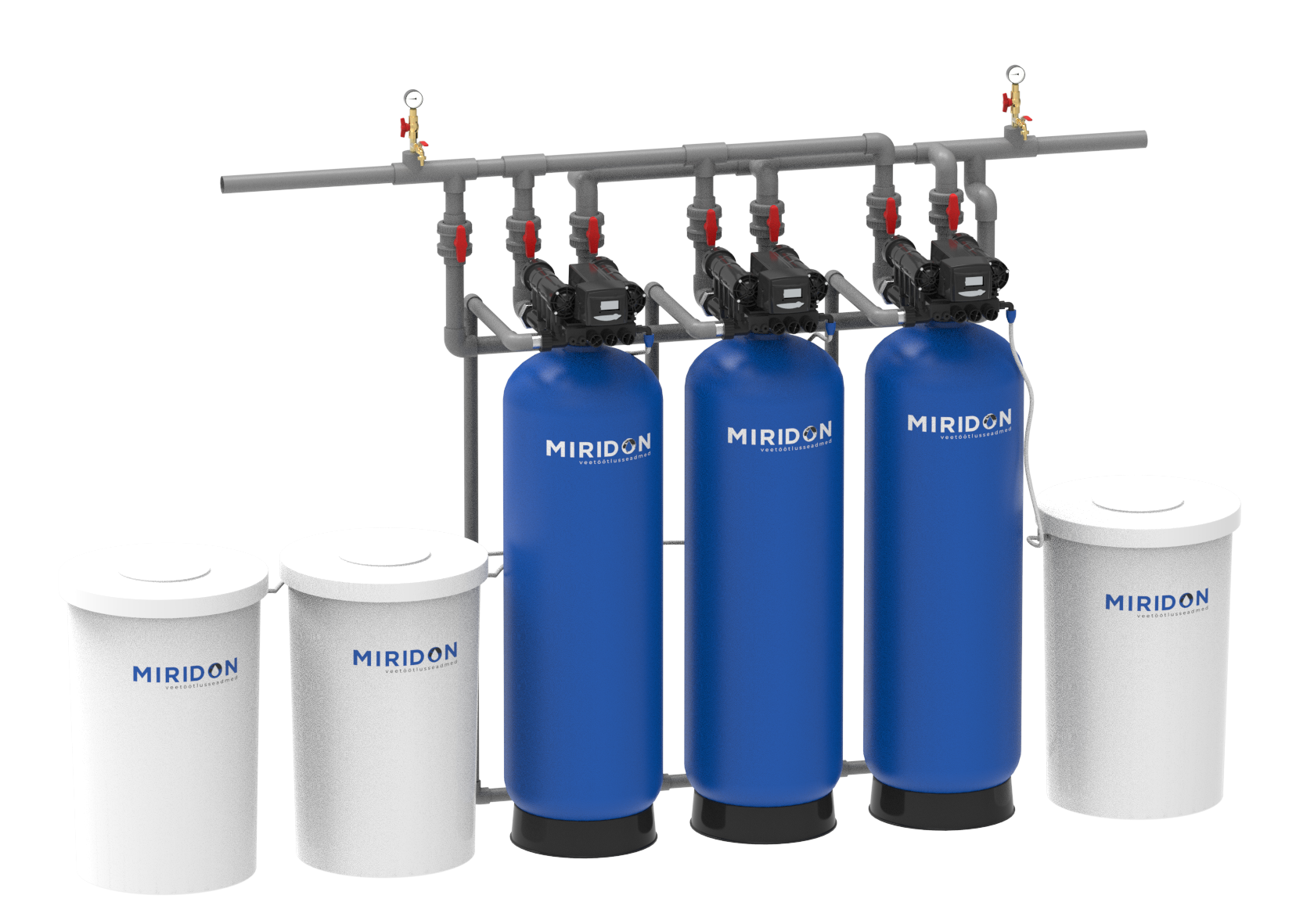

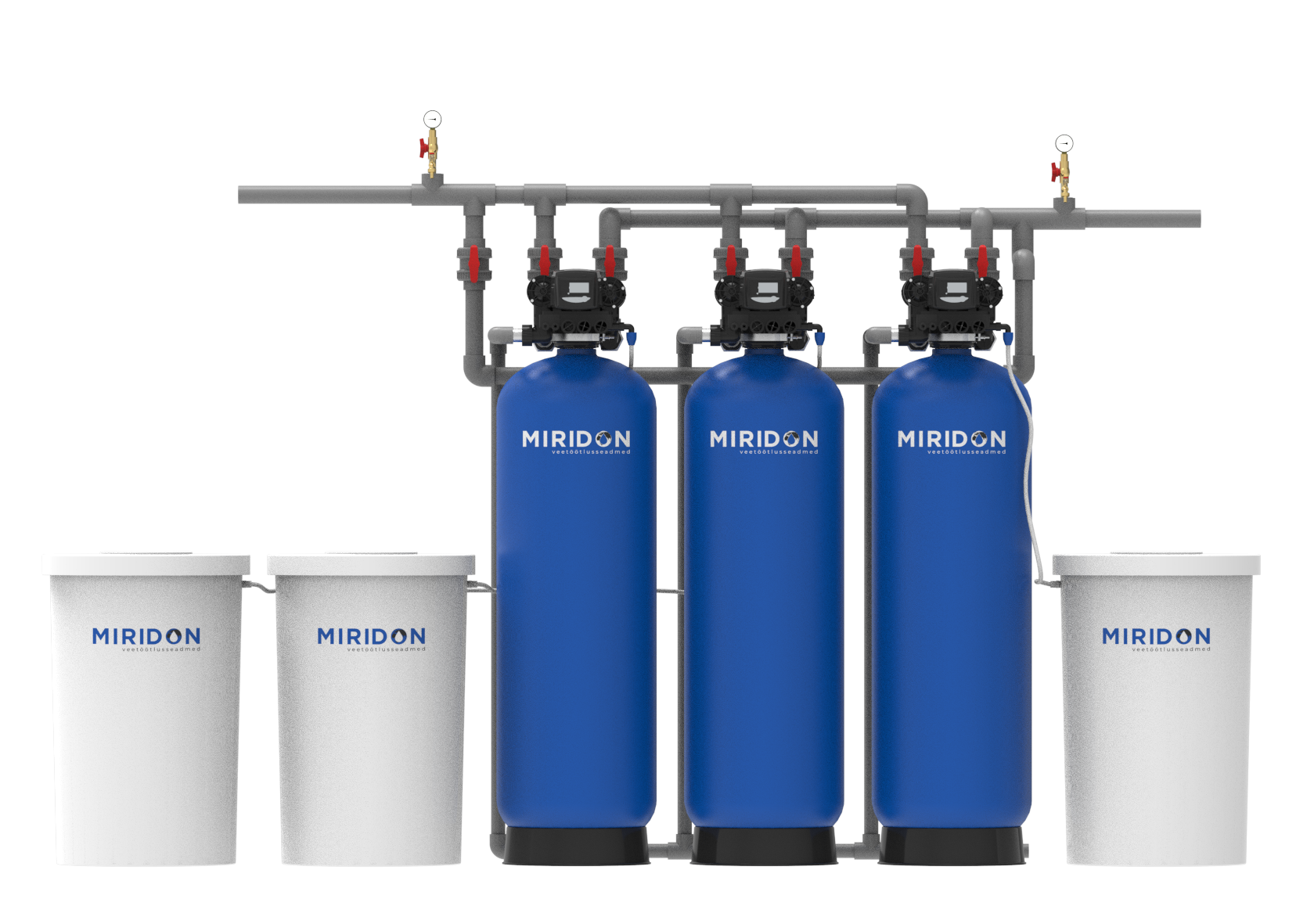

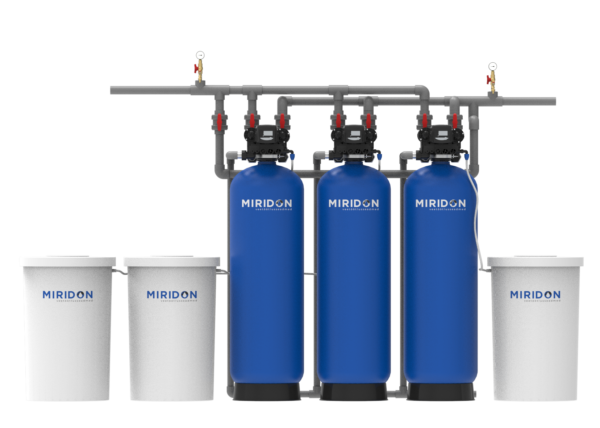

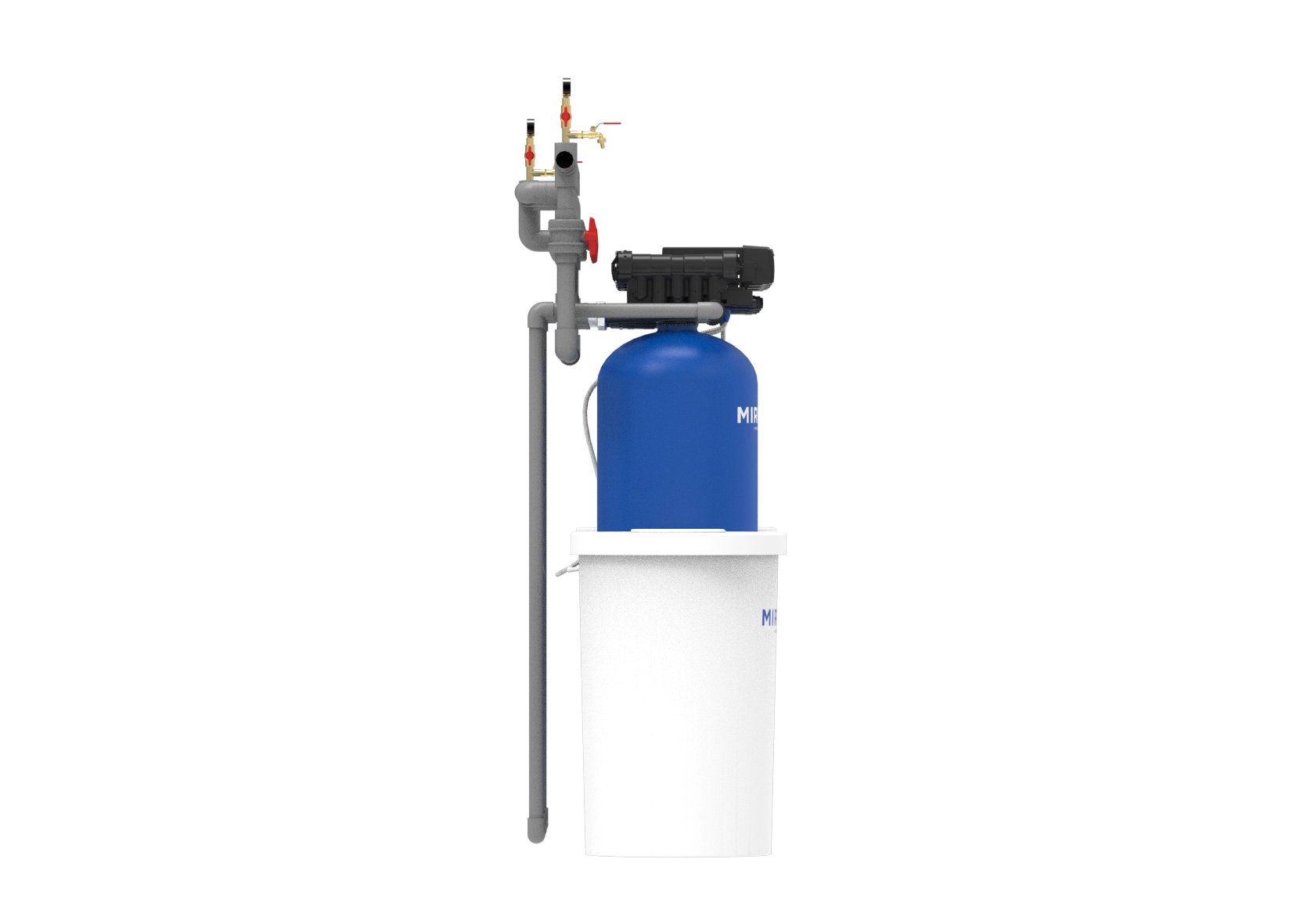

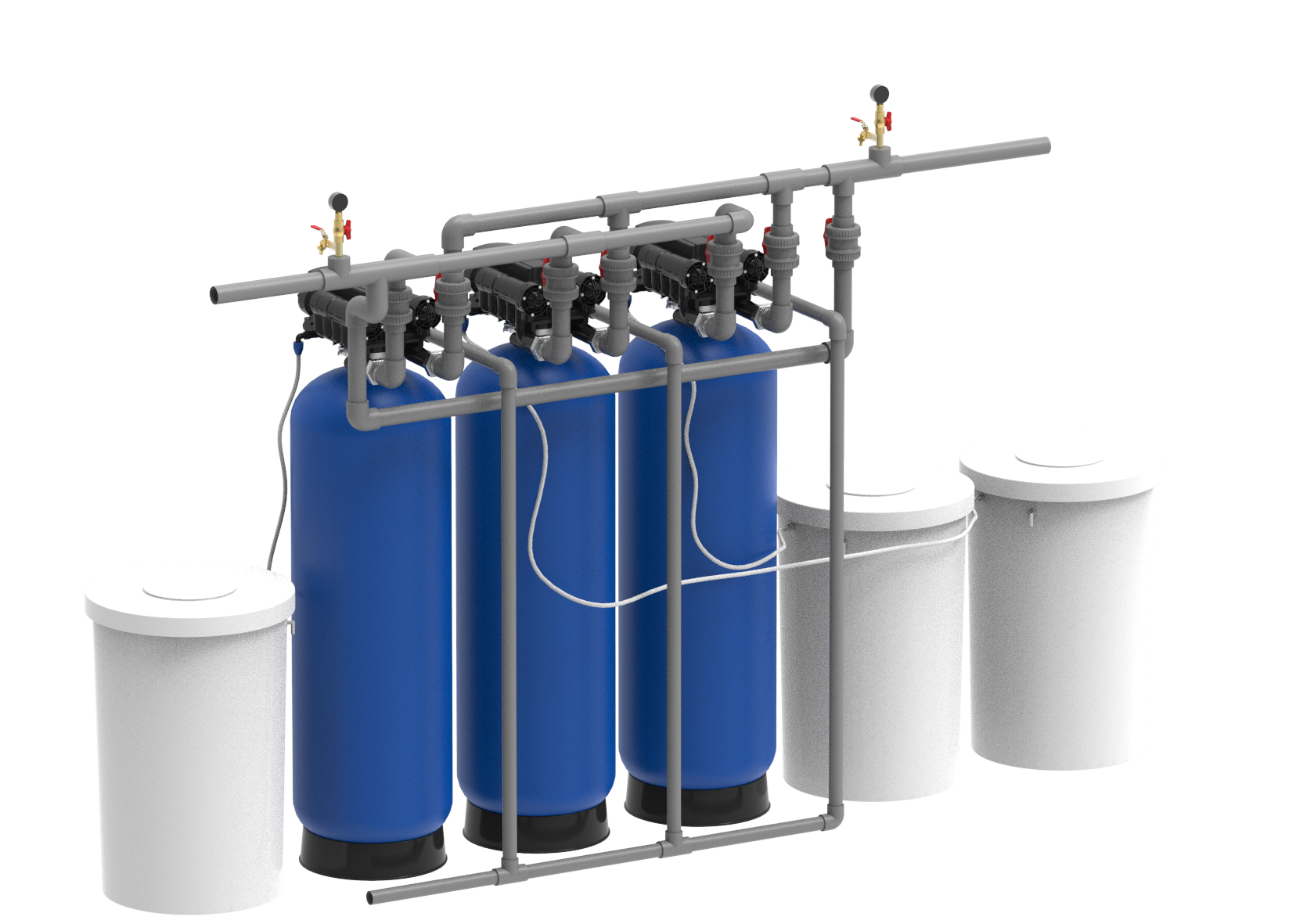

The water softener is designed to remove hardness (i.e. the calcium and magnesium ions contained in the water). The water treatment unit consists of a vessel filled with filter media, a fully automatic controller that manages the filter’s operation and a brine tank. The filter medium is an ion exchange resin made specifically for water treatment.

Intended use

The unit is used when treated water must be available at all times (including during backwashing). Parallel unit – the filter vessels work at the same time but go into backwashing at different times. Each filter vessel has its own water meter, which the unit uses to decide when backwashing is needed. When one unit is backwashing, the other unit does not go into backwashing at the same time but waits until the first unit has finished. For this reason, the backwash start of a parallel unit is programmed with a small margin. A parallel unit is used when continuous soft water is important, but the capacity of a single filter vessel is occasionally insufficient and, for technical reasons, larger filter vessels cannot be used.

Operating principle

In the unit, the calcium and magnesium ions dissolved in the water are replaced with sodium ions. The unit works fully automatically, performing backwashing, i.e. regeneration, according to consumption. The user’s task is to make sure there is always enough of a supply of salt tablets in the brine tank. The installation site needs an electrical outlet and a drain connection.

Technical data

Flow rate, maximum**	8 m³/h
Operating pressure	2–8 bar
Operating temperature	+5 to +30 °C
Electrical connections	230 VAC/50 Hz
Backwash water volume*,**	1441 l
Capacity at total hardness of 1 meq/l**	192 m³
Filter media	cation resin, support gravel
Unit dimensions (l × w × h)	4220 × 900 × 2330 mm
Connections	inlet 2” male thread, outlet 2” male thread, drain 1 1/2” male thread, pilot valve drain 1/4” hose

* Water consumption is calculated per backwash at an inlet pressure of 3.4 bar (under the standard program) ** Data given for one filter vessel

Unit components

1. Controller
2. Timer
3. Filter vessel
4. Upper screen
5. Filter media
6. Center tube
7. Support gravel
8. Lower screen
9. Brine hose
10. Brine tank
11. Brine tank overflow
12. Brine well
13. Salt tablets
14. Brine solution

Unit connections

• Outlet – 2” male thread
• Drain – 1 1/2” male thread
• Inlet – 2” male thread
• Pilot valve drain – 1/4” hose
