Description

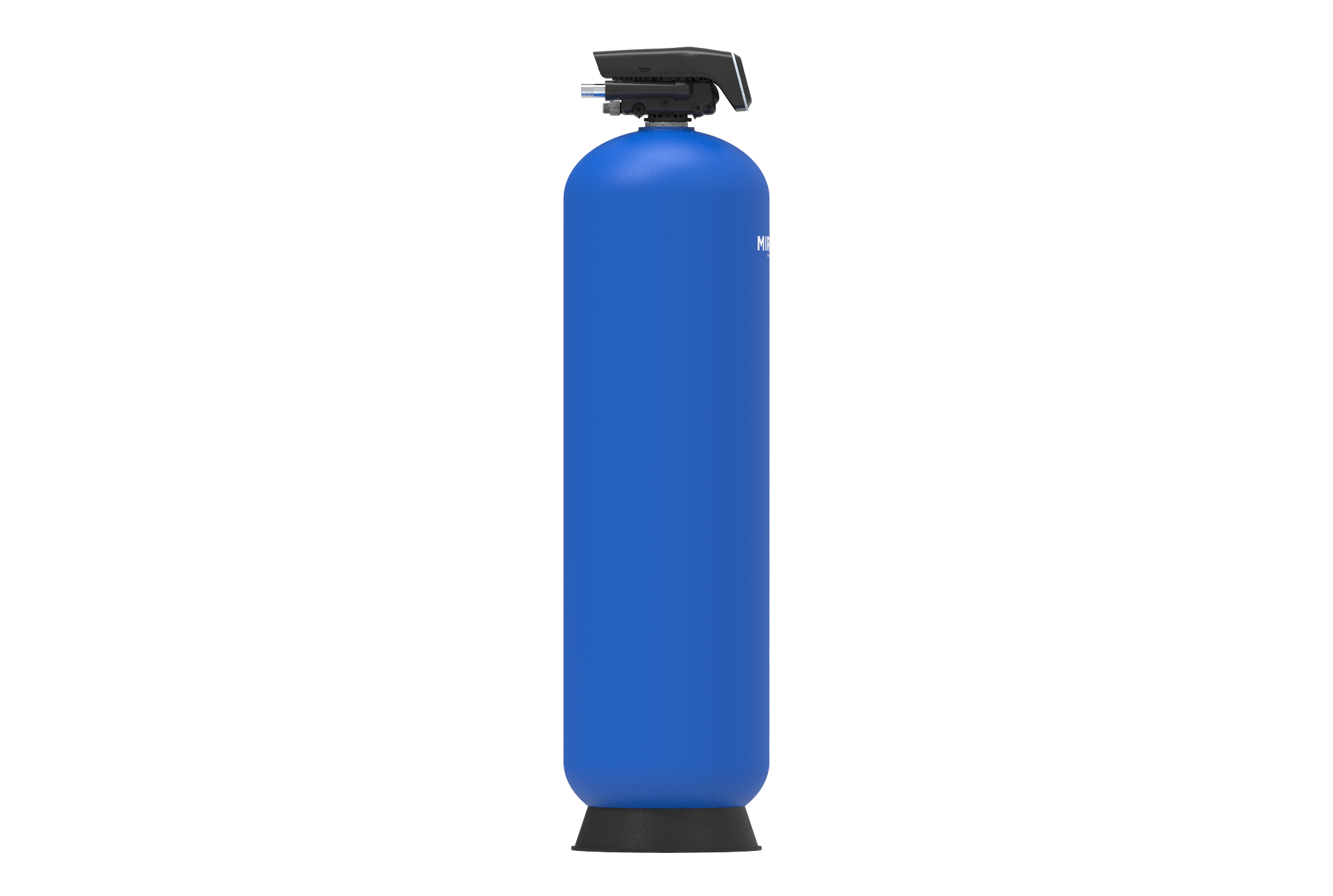

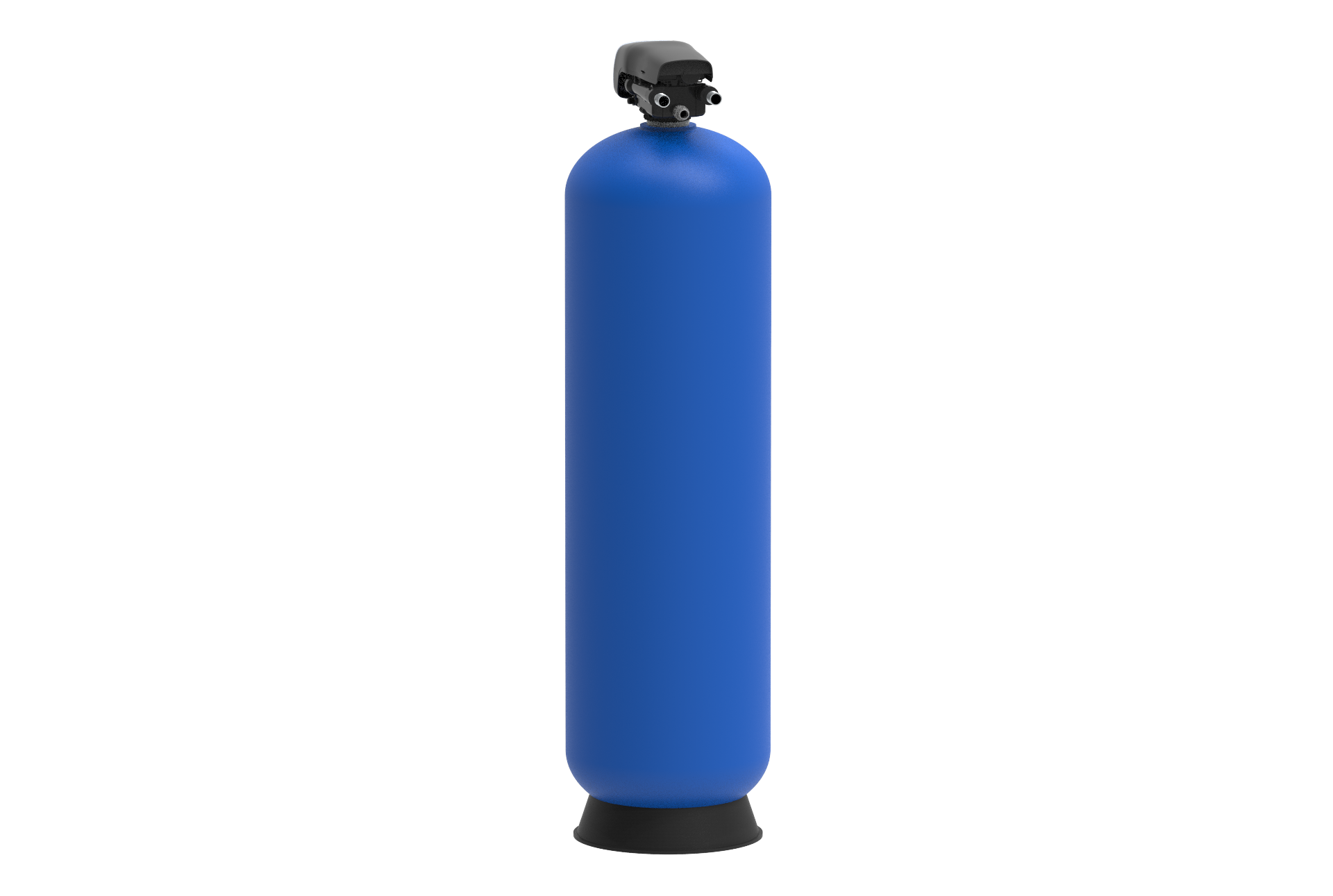

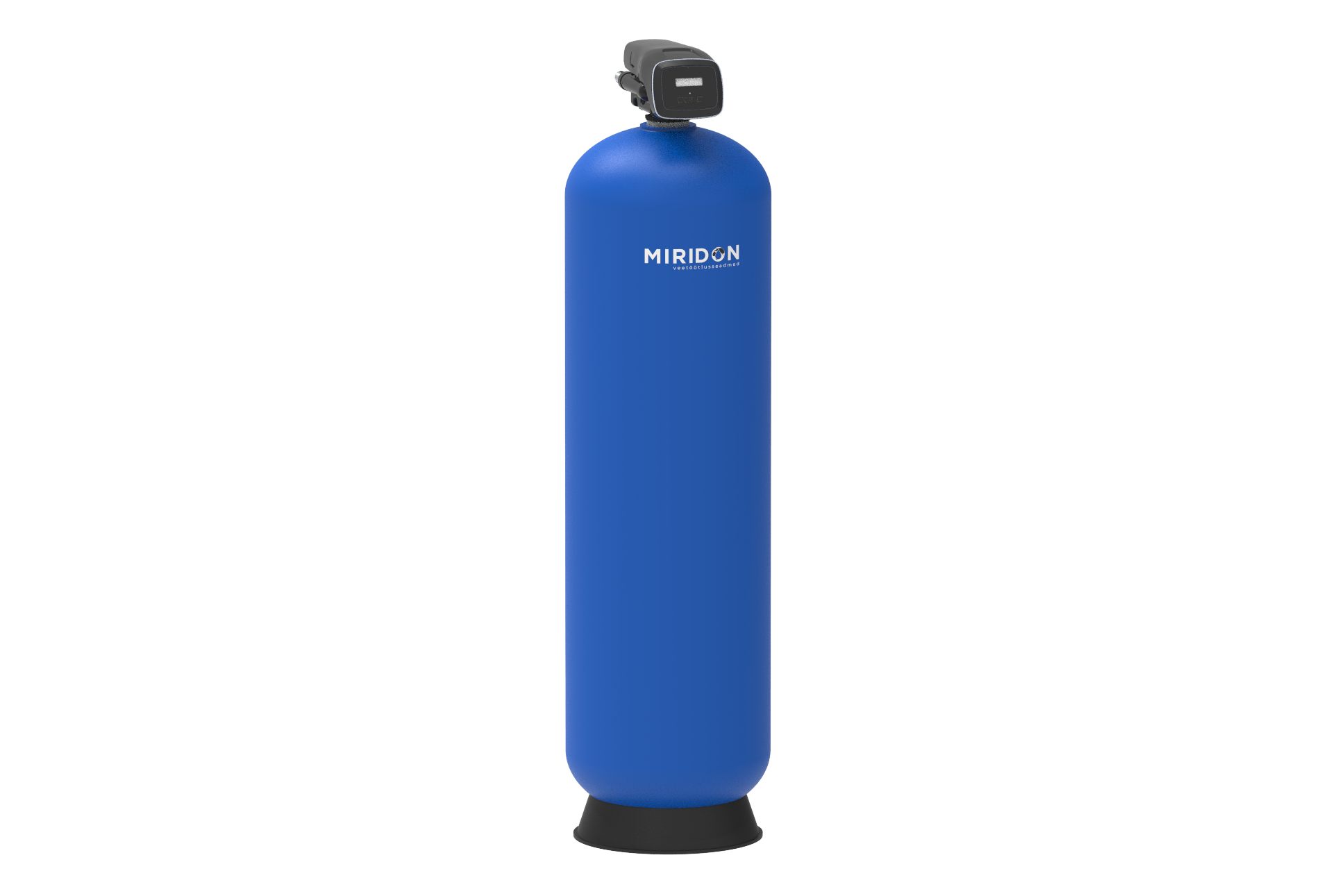

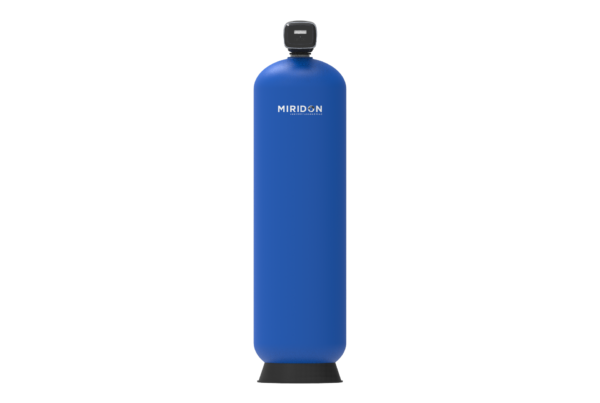

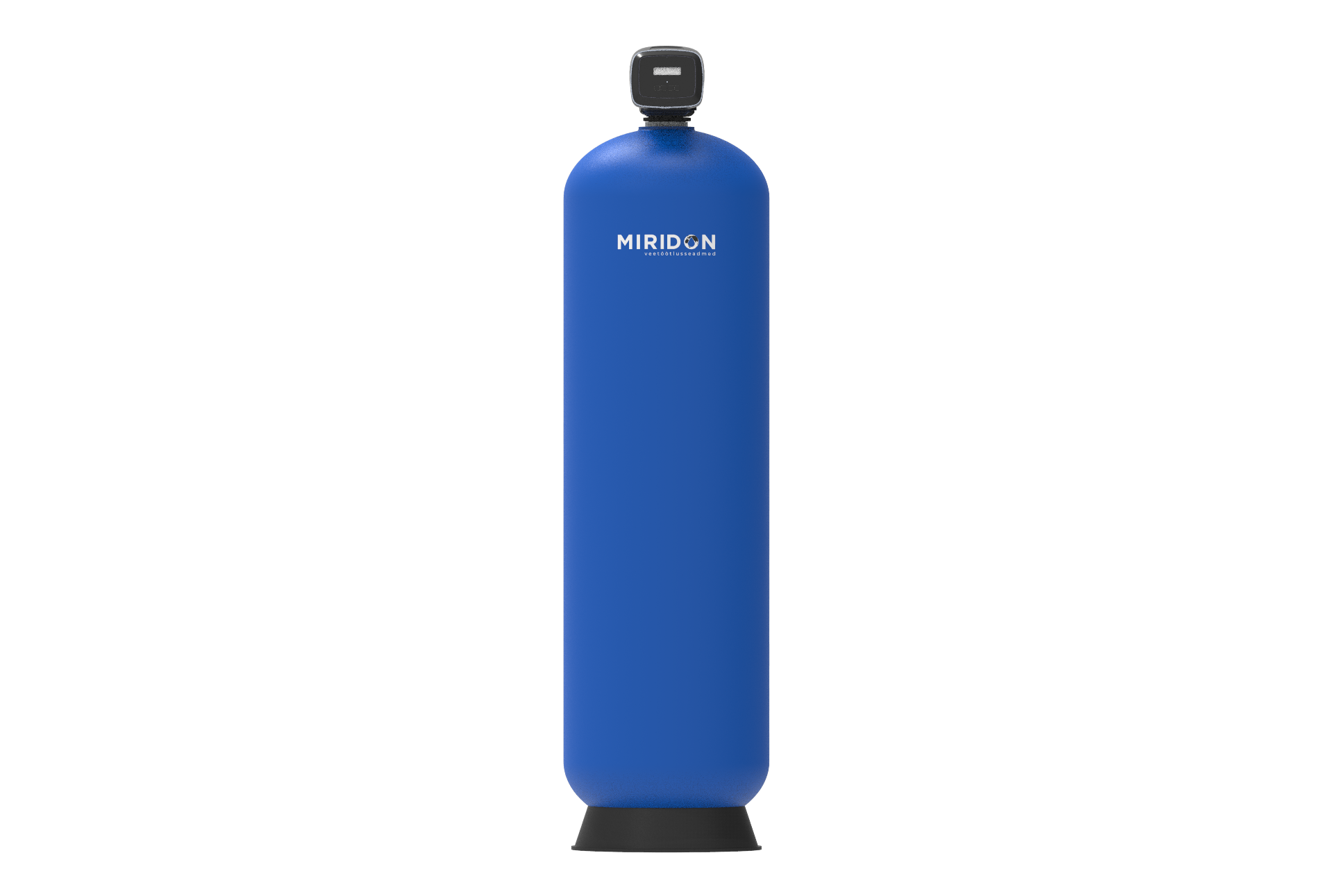

Activated carbon filter AC18
Problem
Odor and taste of the water.
Unit description
The chemical-free activated carbon unit is designed to improve the odor and taste properties of the water. The activated carbon filter completely removes the odor and taste of chlorine and, to a small extent, organic substances dissolved in the water. The unit consists of a vessel filled with filter media and a fully automatic controller that manages the filter’s operation. The filter medium is activated carbon, made specifically for water treatment.
Operating principle
Particles of substances in the water are adsorbed onto the surface of the activated carbon filter media. During backwashing of the filter media, the activated carbon is loosened and the filtered sediment is flushed into the drain. No chemicals are needed to backwash the unit’s filter media. The unit works fully automatically, backwashing on a time basis. Under the standard program, backwashing takes place every three days. The installation site needs an electrical outlet and a drain connection.
Technical data
| Flow rate, maximum | 1.9 m³/h |
| Operating pressure | 2–8 bar |
| Operating temperature | +5 to +30 °C |
| Electrical connections | 230 VAC / 50 Hz |
| Backwash water volume* | 1185 l |
| Backwash water flow rate | 2.74 m³/h |
| Filter media | activated carbon, support gravel |
| Unit dimensions (L × W × H) | 490 × 410 × 1910 mm |
| Connections (inlet, outlet, drain) | 1″ male thread, 1″ male thread, 1″ male thread |
* Water consumption is calculated per backwash at an inlet pressure of 3.4 bar (under the standard program).
Unit components
- Controller
- Timer
- Filter vessel
- Upper screen
- Filter media
- Center tube
- Support gravel
- Lower screen
Unit connections
- Outlet — 1″ male thread
- Drain — 1″ male thread
- Inlet — 1″ male thread
